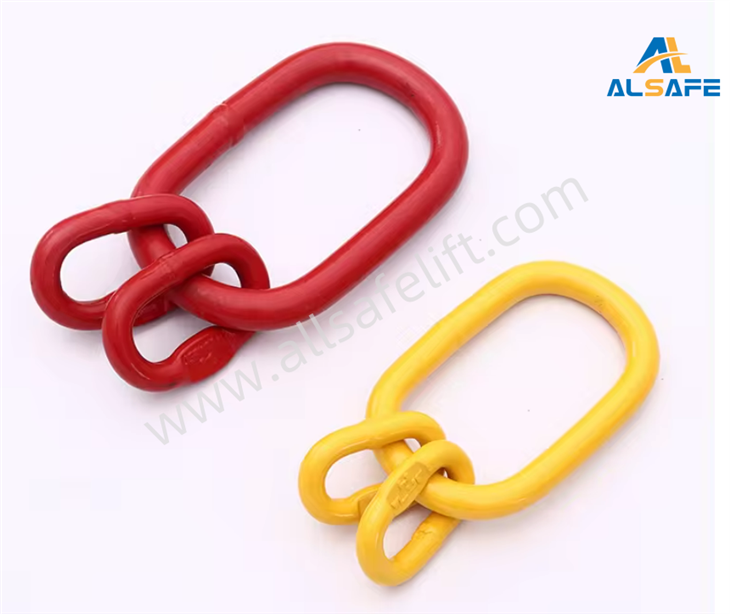

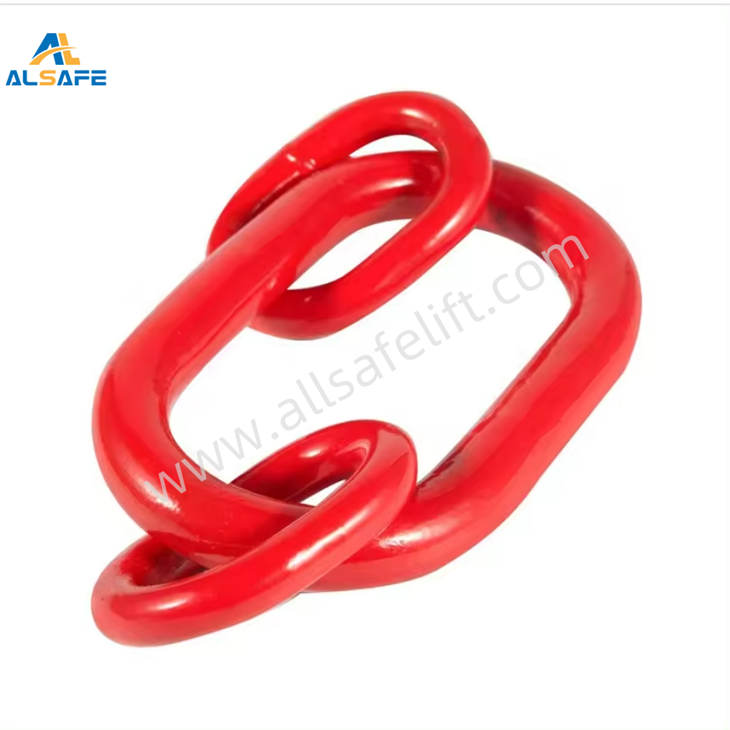

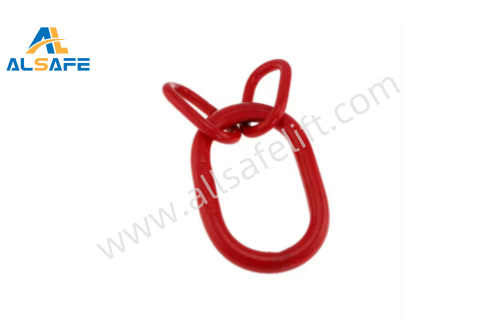

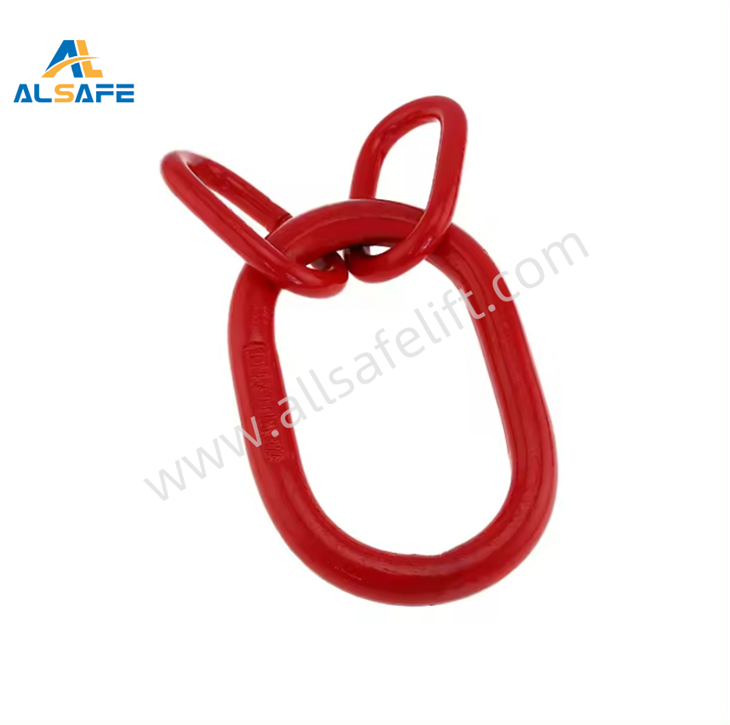

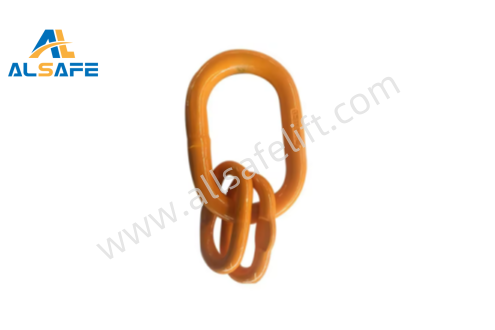

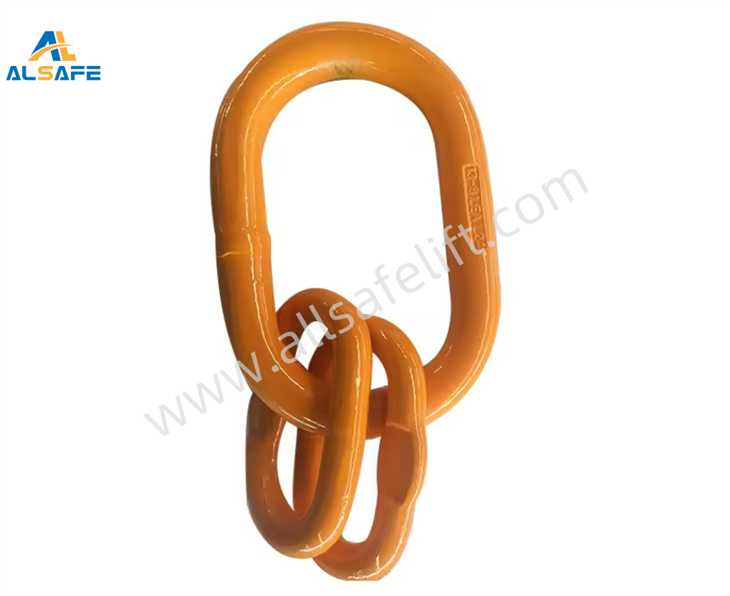

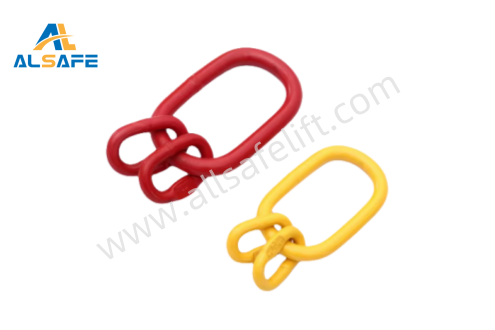

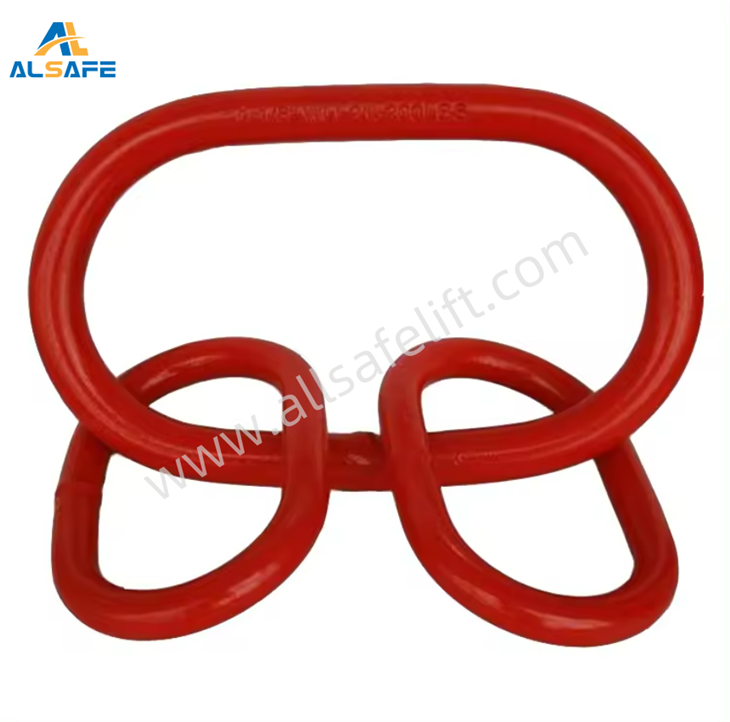

G80 Master Link Assembly
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times WLL for 2000 cycles each batch.
Features
High strength material
G80 Master Link Assembly is made of high-quality alloy steel with excellent strength and toughness. This material can withstand extremely high tensile and compressive forces.
Strict testing
We will conduct strict size control and quality inspection. From the inspection of raw materials to the factory testing of finished products, every process follows strict international standards and internal quality systems.
good versatility
The product has wide versatility and can be perfectly adapted to many different types of chains, ropes and other connecting parts. G80 Master Link Assembly can be flexibly integrated into a variety of devices and operating systems.
Excellent corrosion resistance
After professional anti-corrosion treatment, such as galvanizing, chromium plating and other processes, it has excellent corrosion resistance and can effectively resist the erosion of corrosive factors.
Service advantages
Professional technical support
We have an experienced and highly professional technical team. Whether it is product selection consultation, installation guidance or technical questions during use, our technicians can respond in a timely manner and provide accurate and effective solutions.
Efficient delivery
Our products will arrive quickly and accurately. We will choose the most appropriate logistics method according to the customer's needs and geographical location to ensure that the product is delivered in the shortest time.
After-sales service
We will visit customers regularly to collect customer feedback in order to continuously improve our products and services. In addition, we also help customers better maintain and use products, extend product service life, and reduce usage costs.
product details
Manufactured from G80 alloy steel - Quenched and Tempered
Suitable for G80 lifting chains & wire rope
Individually proof test at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times WLL for 2000 cycles each batch.
100% magnaflux crack detection.
With safety factor of 4:1 for chain sling; 5:1 for wire rope slings.
Conforms to EN1677-4, AS3776.
Suit for 3 or 4 G80 chain sling as per EN818-4 or AS3775.
FOR USE WITH WIRE ROPE SLING, REFER TO din3088: with synthetic sling, refer to EN1492-1.
PRESSING FLAT AVAILABLE UPON REQUEST RANGE FRON 6-20MM, suit to Omega Link.
