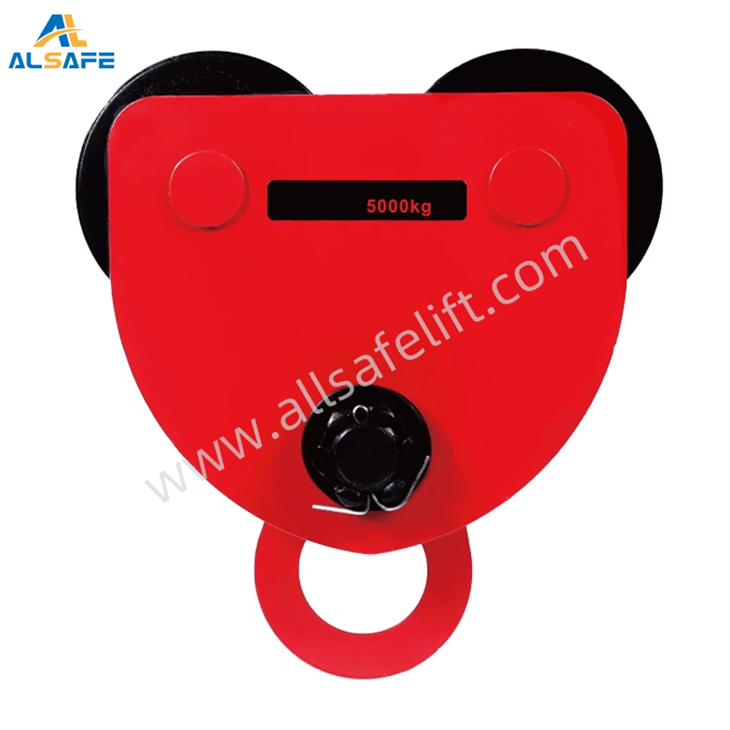

Manual Plain Trolley
The trolley enables the exact positioning or easy traversing of large loads with manual or powered hoist equipment.
It has excellent rolling features due to machined steel mounted on prelubricated , encapsulated ball bearing.
Adjustable to fit a wide range of beam widths and profiles.
It has excellent rolling features due to machined steel mounted on prelubricated , encapsulated ball bearing.
Adjustable to fit a wide range of beam widths and profiles.
Send Inquiry
Product Introduction
Specifications and models
TECHNICAL PARAMETERS | |||||||
Model | Capacity(t) | Compatible Rail Size(mm) | Min Rotation Radius(mm) | Net Weight(kg) | |||
Min Width | Max Width | Min Height | Max Height | ||||
TH-A05 | 0.5 | 75 | 125 | 100 | 150 | 900 | 6.0 |
HT-A10 | 1.0 | 75 | 125 | 125 | 250 | 1300 | 10.0 |
HT-A20 | 2.0 | 100 | 150 | 150 | 400 | 1500 | 18.5 |
HT-A30 | 3.0 | 100 | 150 | 180 | 400 | 2000 | 26.0 |
HT-A50 | 5.0 | 125 | 175 | 250 | 450 | 2600 | 44.0 |
HT-A100 | 10.0 | 150 | 175 | 250 | 450 | -- | 96.0 |
